光強計
|
Item # |
PM100A |
PM100D |
PM100USB |
PM200 |
PM400 |
PM320E |
|
(Click Photo to Enlarg |
/ | / | / | / | / |
/ |
|
描述 |
緊湊型功率計表頭，機械指針和圖形液晶顯示 |

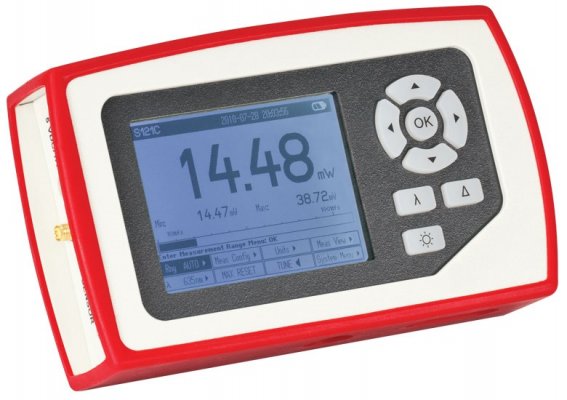

緊湊型光功率和能量計表頭，數字4英寸液晶顯示器 |
用于C-系列傳感器的USB功率和能量計接口 |

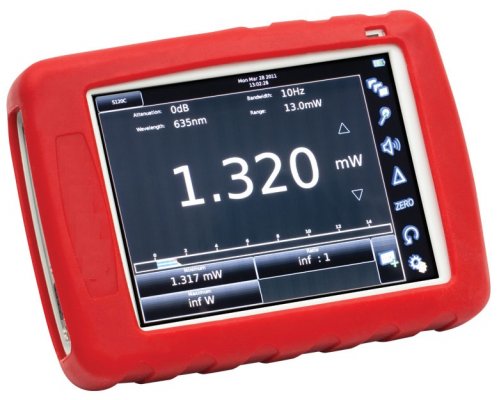

觸摸屏功率計和能量計表頭, 5.7" 彩色 LCD |
光功率能量計表頭，投射電容式觸摸屏 |
雙通道臺式功率和能量計控制臺 |
|
價格 |
￥11,108.10 |
￥12,243.00 |
￥7,666.78 |
￥17,274.00 |
￥11,571.30 |
￥25,571.00 |
|
Description |
Analog Power Meter Console |
Digital Power and Energy Meter Console |
USB Power and Energy Meter Interface |
Touchscreen Power and Energy Meter Console |
Touchscreen Power and Energy Meter Console with Multi-Touch |
Dual-Channel Benchtop Power and Energy Meter Console |
|
Compatible Sensors |
Photodiode and Thermal |
Photodiode, Thermal, and Pyroelectric |
||||
|
Housing Dimensions |
7.24" x 4.29" x 1.61" |
7.09" x 4.13" x 1.50" |
3.67" x 2.38 " x 1.13" |
6.70" x 4.93" x 1.48" |
5.35" x 3.78" x 1.16" |
4.8" x 8.7" x 12.8" |
|
Channels |
1 |
2 |
||||
|
External Temperature Sensor Input |
- |
- |
- |
- |
Instantaneous Readout and Record Temperature Over Time |
- |
|
External Humidity Sensor Input (Sensor not Included) |
- |
- |
- |
- |
Instantaneous Readout and Record Humidity Over Time |
- |
|
GPIO Ports |
- |
4, Programmable |
4, Programmable |
- |
||
|
Source Spectral Correction |
- |
- |
- |
|
|
- |
|
Attenuation Correction |
- |
- |
- |
|
|
- |
|
External Trigger Input |
- |
- |
- |
|
|
|
|
Display |
||||||
|
Type |
Mechanical Needle and LCD Display with Digital Readout |
320 x 240 Pixel Backlit Graphical LCD Display |
No Built-In Display |
Resistive Touchscreen with Color Display |
Protected Capacitive Touchscreen with Color Display |
240 x 128 Pixels |
|
Dimensions |
Digital: 1.9" x 0.5" |
3.17" x 2.36" |
- |
4.65" x 3.48" |
3.7" x 2.1" |
3.7" x 2.4" |
|
Refresh Rate |
20 Hz |
Up to 500 Hz |
100 Hz |
10 Hz (Numerical) |
20 Hz |
|
|
Measurement Viewsa |
||||||
|
Numerical |
|
|
Requires PCb |
|
|
|
|
Mechanical Analog Needle |
|
- |
- |
- |
- |
- |
|
Simulated Analog Needle |
- |
|
Requires PCb |
|
|
|
|
Bar Graph |
- |
|
Requires PCb |
|
|
|
|
Trend Graph |
- |
|
Requires PCb |
|
|
|
|
Histogram |
- |
|
Requires PCb |
- |
- |
|
|
Statistics |
|
|
Requires PCb |
|
|
|
|
Memory |
||||||
|
Type |
- |
SD Card |
- |
NAND Flash |
NAND Flash |
- |
|
Size |
- |
2 GB |
- |
128 MB |
4 GB |
- |
|
Power |
||||||
|
Battery |
LiPo 3.7 V 1300 mAh |
- |
LiPo 3.7 V 2600 mAh |
LiPo 3.7 V 2600 mAh |
- |
|
|
External |
5 VDC via USB or Included AC Adapter |
5 VDC via USB |
5 VDC via Included Power Supply |
5 VDC via USB |
Selectable Line Voltage: 100 V, 115 V, 230 V (±10%) |
|
